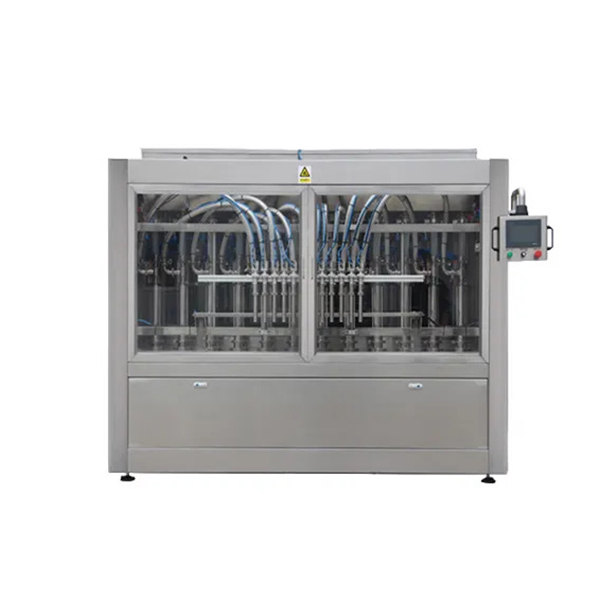

Automatisk volymetrisk vätskeflaskmaskin

Arbetsprincip

---

1. Manually put the bottles & the caps separately into the Tilted Hopper & Cap vibrator. The Bottle will be arranged by the Tilted Hopperwith bottle bottom towards rear & bottle mouth towards front, lies on the Feeding Conveyer Belt to be deliveredto the Bottle Unscrambler.

2. Bottle neck upward, bottle bottom backward, laid bottle come into bottle unscrambler; after unscrambing, bottles will stand up and be transfered into filling station on the conveyor.

3. Eye detecting station: it detects if there are Bottles to be filled.

4. No Bottles no filling.

5. Filling station: when the Bottles arrive under filling station, filling nozzles will dive into the Bottle for filling the product.

6. Cap loading station: caps will be sorted under vibrator and drop on the mouth of Bottle one by one.

7. Cap tightening station: to tighten the caps for Bottles under specialized device.

8. Discharging station: finished products will be pushed out by poking fork and delivered on outfeed conveyor.

Kontrollpanel

---

Det finns en kontrollpanel installerad på maskinen för att starta / stoppa maskinen och justera hastigheten på vibrator, transportör och arbetsbord.

snabba detaljer

---

Typ: Påfyllningsmaskin, Påfyllningsmaskin
Skick: Ny
Tillämpning: Kemikalie, Varor, Livsmedel, Maskiner & Hårdvara, Medicinsk, Mat, Medicinsk, Kemisk, apotek
Förpackningstyp: fat, flaskor, burkar, stand-up påse
Förpackningsmaterial: Glas, metall, plast
Automatisk betyg: Automatisk
Drivd typ: elektrisk
Spänning: 110V / 60Hz Enfas
Effekt: 1,5KW
Ursprungsplats: Shanghai, Kina (fastlandet)
Märke: VKPAK
Mått (L * B * H): 2000 * 750 * 1450 mm
Vikt: 680kg
Certifiering: CE
Tillhandahållen service efter försäljning: Ingenjörer tillgängliga för service maskiner utomlands
namn: krämfyllningsmaskin
användning: spruta
kapacitet: 0,22 m3 / min
Takavkastning: ≥99%
hastighet: över 3000 st / timme
Påfyllningsvolym: 15 ml

---

An automatic volumetric liquid bottle filling machine is a piece of equipment that is used to fill bottles with liquid accurately and efficiently. This machine works by measuring the volume of the liquid being dispensed and filling the bottle up to the predetermined level. This is done through the use of sensors and other control mechanisms that ensure that the liquid is dispensed at a consistent rate and with a high level of accuracy.

One of the main advantages of using an automatic volumetric liquid bottle filling machine is the speed and efficiency that it offers. With this machine, it is possible to fill large numbers of bottles quickly and accurately, which can help to increase productivity and reduce the amount of time and labor required for the process.

Another advantage of this type of machine is its versatility. It can be used to fill bottles of different sizes and shapes, as well as different types of liquids, such as water, juice, oil, and other liquids. This makes it ideal for use in a wide range of industries, including the food and beverage industry, the pharmaceutical industry, and the cosmetic industry.

Overall, an automatic volumetric liquid bottle filling machine is a highly effective and efficient piece of equipment that can help businesses to increase their productivity and reduce costs. Whether you are filling bottles of water or filling bottles of medicine, this machine is an essential tool for any modern manufacturing process.
